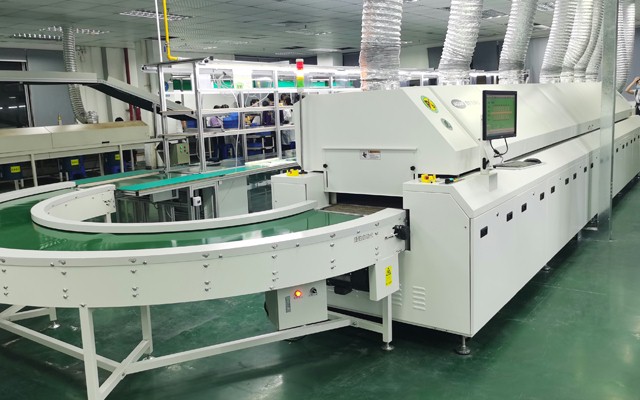

Heat Sink Reflow Soldering

Jaguar Automation, dedicated reflow soldering for radiators, is suitable for manufacturing customers of high-power, large-sized, and highly heat-dissipating devices such as new energy vehicles, servers/data centers, industrial power supplies, photovoltaic energy storage, and high-power LED modules.

1. Core Adaptation to Industries and Customers

New Energy Vehicles (Most Core)

Three-charging-system components (BMS, motor controller, OBC), IGBT/SiC power modules, on-board chargers, thermal management systems; require large-sized radiators, high-temperature stability, strong load capacity, and high thermal conductivity welding.

Servers/Data Centers

CPU/GPU cooling modules, server power supplies, AI computing modules; suitable for heavy-duty radiators, high power density, batch stability, low energy consumption.

Industrial Power Supplies/Variable Frequency Converters

High-power UPS, servo drives, photovoltaic inverters, energy storage converters; matched with large aluminum substrates, high-temperature processes, long-term stability, high yield.

High-power LED/Lighting

Outdoor large screens, industrial lighting, UV curing, vehicle lamp modules; meet high heat dissipation, large size, lead-free high-temperature, and efficient mass production requirements.

Other High-Power Electronics

Communication base station power amplifiers, medical high-power equipment, rail transit power supplies; suitable for heavy loads, precise temperature control, high reliability welding.

2. Matching Production Scenarios and Pain Points

Large-sized / Heavy-duty Workpieces: Radiator height 0–400mm, mesh width up to 1000mm, load ≥ 80–100kg/m.

High-temperature Processes: Long-term stable operation up to 400℃, suitable for high-melting-point soldering materials and aluminum substrate welding.

Precise Temperature Control: Multi-zone independent temperature control (±5℃), adjustable zone air velocity, solve uneven heat dissipation, short-circuiting, and deformation.

Efficient Mass Production: Energy-saving air ducts, high load, quick changeover, suitable for large-scale production of high-power devices.

3. One Sentence Customer Profile

Suitable for manufacturing high-power, large-sized, and highly heat-dissipating electronic components, with rigid requirements for high-temperature stability, strong load capacity, precise temperature control, and efficient mass production. This includes manufacturing enterprises of new energy vehicles, servers, industrial power supplies, photovoltaic, and LED.
