DIP insertion in PCBA manufacturing
From:本站 Author: Publish time:2010-03-24 15:40 Clicks:1823
In the electronics manufacturing industry, PCBA (Printed Circuit Board Assembly) is a crucial step. It connects various electronic components together to form diverse electronic systems. During the processing of PCBA, the DIP insertion technology (Dual In-line Package insertion technology) enjoys unique advantages and wide applications, and is favored by electronic equipment manufacturers. This article will provide an in-depth introduction to the DIP insertion technology in PCBA manufacturing.

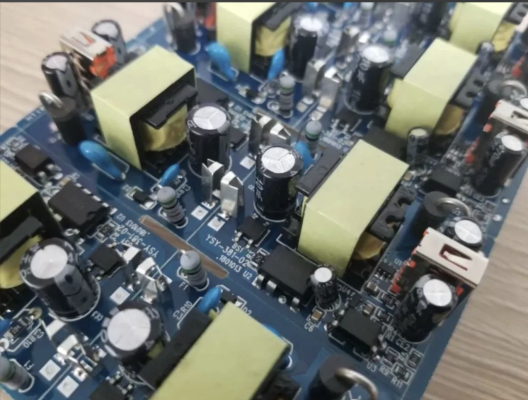

The DIP (Dual In-line Package) plug-in process is a crucial component in the manufacturing of PCBA (Printed Circuit Board Assembly). It mainly deals with large-sized components that cannot be automatically mounted by machines due to factors such as size, weight, or temperature tolerance. These components need to be manually plugged in, and then electrically connected through methods like wave soldering, etc., to complete the assembly of the product.
The DIP plug-in process consists of the following main steps: plug-in, wave soldering, foot-cutting, inspection and testing. Each step is closely linked and works together to ensure the quality and performance of the PCBA products.
